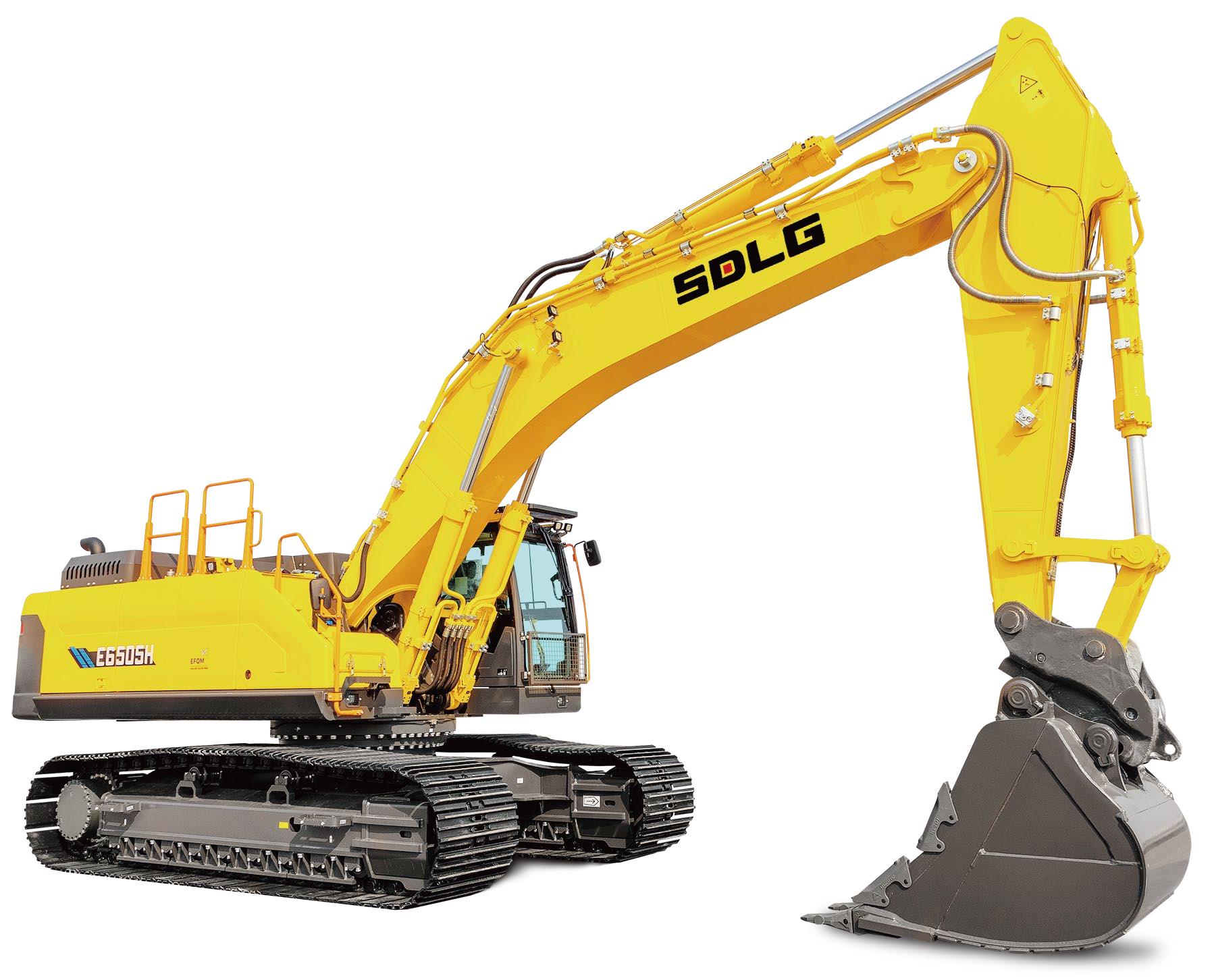

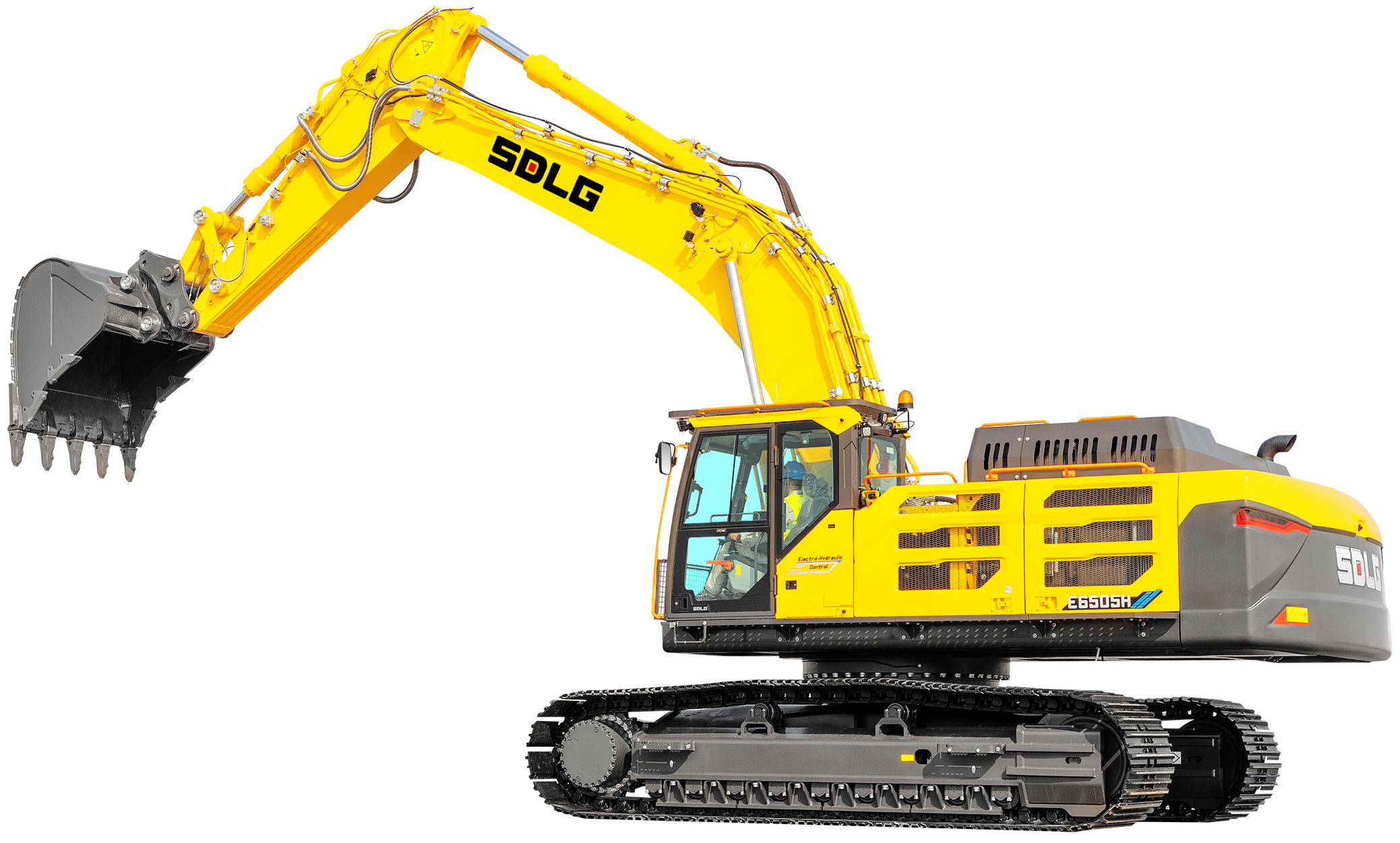

Excavator E6505H(Cummins)

Operating Weight (kg)

52000

Rated Power (kW)

321

Bucket capacity (m³)

3.2
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

Powerful And High Efficient

High-power and large-displacement engine with low speed and high torque, a high-pressure common rail injection system, and multiple working modes.



Reliable And Stable

Fully electronically controlled hydraulic system, an independent large hydraulic oil cooler, a large chassis, sturdy structural components and frame, and multiple levels of filtration.

Safe And Comfort



Comfortable cab with safety protection features, an air-suspended seat, a touchscreen IECU, seat heating, centralized lubrication and maintenance layout, and a rear camera.



Technical Parameter
Operating Weight (kg) 52000
Engine Model X12S3A360
Rated Power (kW) 321
Bucket capacity (m³) 3.2
Length×Width×Height (mm) 11850×3565×3757
Emission Standard Stage ⅢA
Swing Speed (r/min) 8.5
Traveling Speed (km/h) 3.2/5.3
Max. Digging Radius (mm) 11290
Max. Digging Depth (mm) 7030
Max. Digging Height (mm) 10590
Fuel Tank Capacity (L) 760
