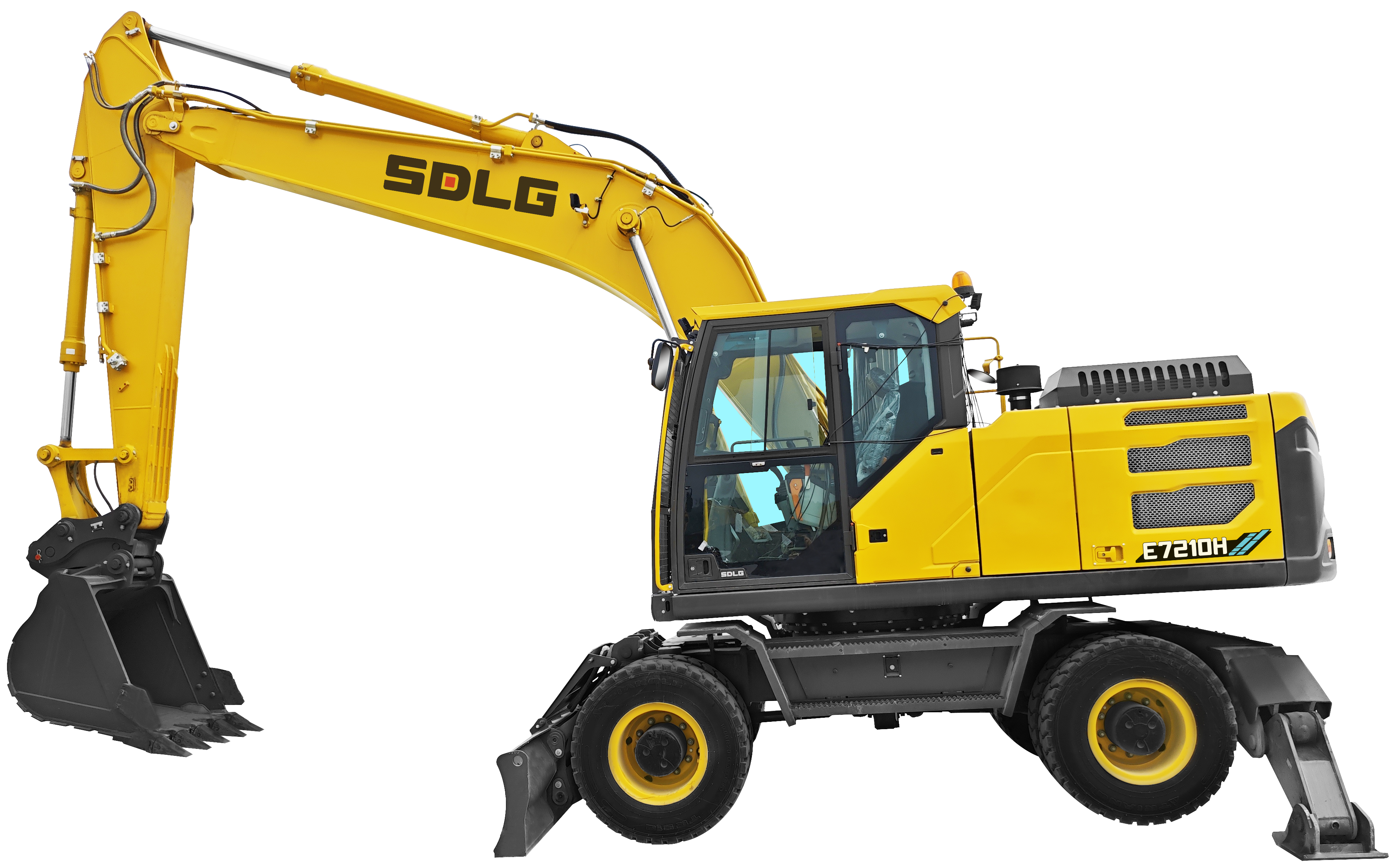

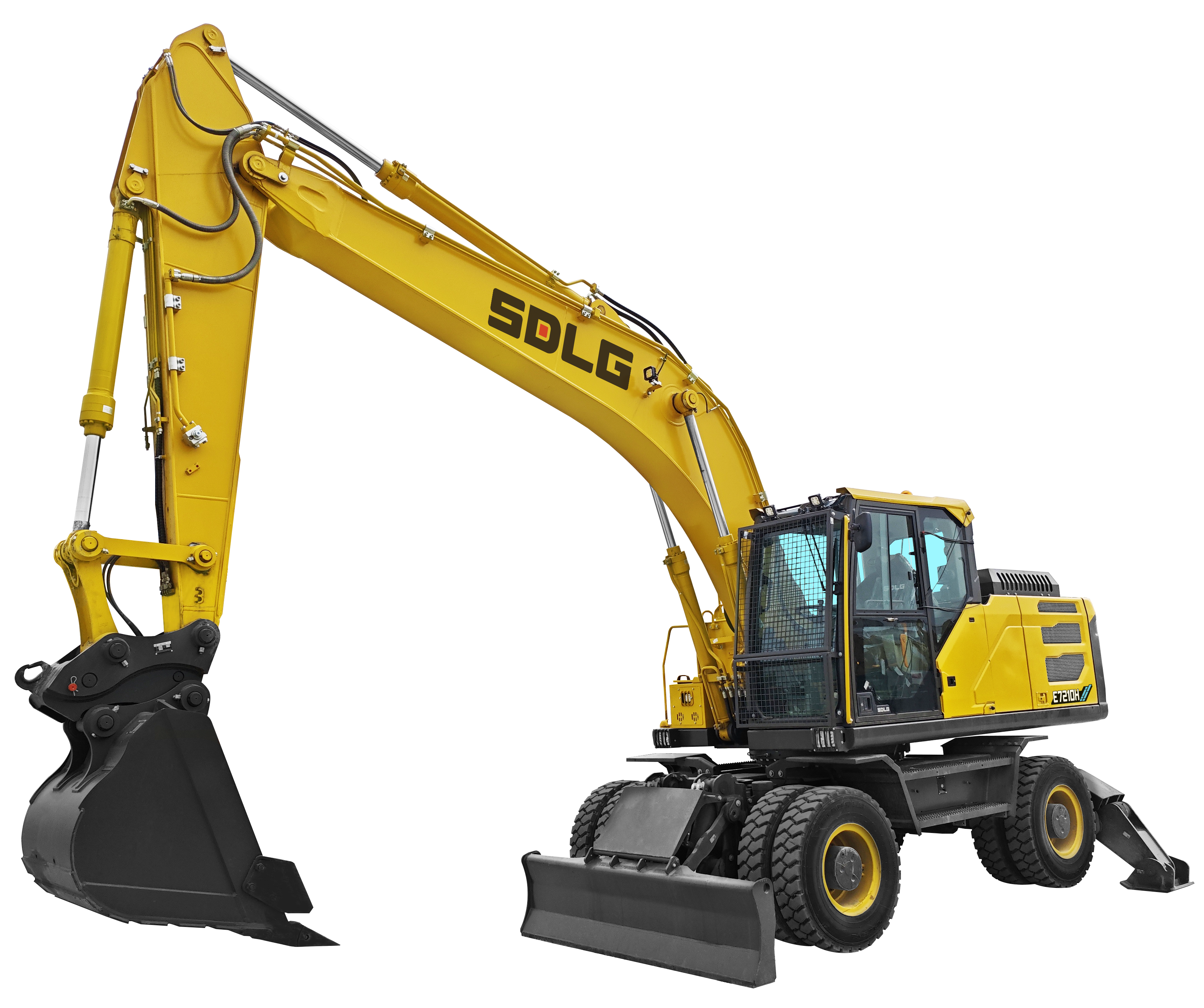

E7210H is a one new comprehensive wheeled excavator launched by SDLG, it adopts new H series appearance, with durable power system, good fuel adaptability; Equipped with high efficient electronic control hydraulic system, has quick action response, flexible compound action, high efficiency; High-end H series cab, smooth operation, comfortable driving, which makes it in clearing, gravel, urban construction and other comprehensive operating conditions have very excellent performance.
123kw DDE single unit pump 6 cylinder engine, good fuel adaptability, efficient hydraulic system, provide high productivity.
Electro-hydraulic control positive flow hydraulic system, core components good quality rigid structural parts, legs choose, X1/X3/QC pipeline.
Open view comfortable cab, mechanical suspension seat, flexible operation, centralized arranged filters.
| Operating Weight (kg) | 22400kg |
| Bucket capacity (m³) | 0.95m³ |
| Slewing speed | 11r/min |
| Traveling speed (low/high) | 3/36.5km/h |
| Maximum digging force | 112.2/93.5kN |
| Altitude | 2000m |
| Wading depth | 390mm |
| Engine model/Drive Motor Model | BF6M2012-17T2 |
| Engine power | 123KW |
| Maximum flow rate | 6-101×126L/min |
| Fuel specifications and filling amount | 380L |
| Overall length | 9700mm |
| Overall width | 2510mm |
| Overall height | 3420mm |
| Boom length | 5700mm |
| Wheel track | 1914 |
| Arm length | 2900mm |
| wheelbase | 2750mm |
| Crawler wheelbase/Wheelbase | 2750mm |
| Maximum digging radius | 10275mm |
| Maximum digging depth | 6800mm |
| Maximum discharge height | 6570mm |
| Overall length during transfer | 9700mm |
| Shovel width (with band edge) | 1220mm |
| Maximum digging depth under length of bottom surface of 2.5m | 6615mm |
| Maximum digging height | 10070mm |
| Contour dimension of complete machine (transfer position) | 9700×2510×3420mm |
| Overall width of upper assembly | 2490 |
| Overall width of chassis | 2510mm |
| Overall height to cab top | 3420mm |
| Rear slewing radius | 2830mm |
| Overall height to hood top | 2675mm |
| Ground clearance of upper assembly | 1280mm |
| Wheel track of crawler/Wheel track | 1914mm |
| Minimum ground clearance | 380mm |
| Overall height of working mechanism during transfer | 3350mm |
| Maximum digging radius of reference ground | 10065mm |
| Maximum vertical digging depth | 5760mm |
| Minimum front turning radius | 3650mm |
